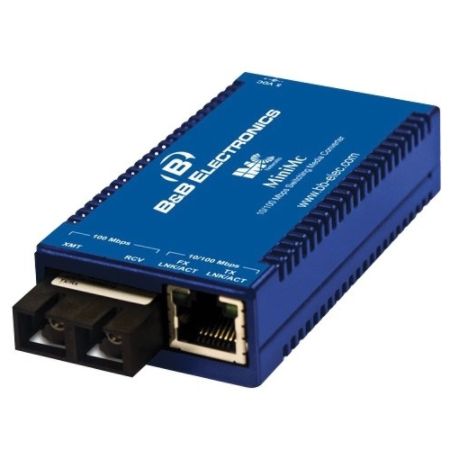

B&B MiniMc, TP-TX/FX-MM1300-ST Item # 403587
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
403587
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Designed and manufactured in the USA, the MiniMc series extends 10 Mbps and 100 Mbps twisted pair network segments over regular duplex or single-strand fiber optics. Both a media converter and data rate converter, the MiniMc series features 10/100 auto-negotiation on the twisted pair port while the fiber port operates at 100 Mbps Fast Ethernet full duplex.MiniMc is the most versatile media converter in today's market - it is available with an external AC power supply, with a USB power cable, or for installation into the PowerTray/18 which allows the industry's highest port density - 18 conversions.MiniMc 10/100 switching fiber media converters are ideal for any premises, FTTD, LAN-to-LAN or LAN-to-MAN fiber networking applications.
Product Details
| Item # | 403587 |
| OfficeMax # | 23589430 |
| Manufacturer # | K45943 |
| Ethernet Technology | Fast Ethernet |
| height | 0.8 in |
| Certifications & Standards | FCC Class B; UL/cUL; CSA; CE; IEEE 802.3; IEEE 802.3u |
| Number of Network (RJ-45) Ports | 1 |
| Product Line | MiniMc |
| width | 1.8 in |
| depth | 3.3 in |
| Number of ST Ports | 1 |
| Product Name | Smallest, Most Reliable Switching Media Converter |
| manufacturer | B+B SmartWorx |
| Maximum Distance Supported | 3.11 Mile |
| brand name | B+B |
| USB | No |
| Digital Audio/Video | No |
| Digital Audio | No |
| Input Voltage | 5 V DC |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair; Optical Fiber |
| Total Number of Ports | 2 |
| DVI | No |
| Management Port | No |
| Parallel Port | No |
| Fiber Mode Supported | Multi-mode |
| form factor | Desktop; Rail-mountable; Wall Mountable |
| Network Technology | 10/100Base-TX; 100Base-FX |
| Show More ▾ |
